How to Use MSRA For Remote Screen Sharing in Windows 10

Remote sharing is nowadays at its peak, people use remote sharing to provide live support or for sharing screens. Most of us always use third-party software for sharing or controlling remote systems using software like Teamviewer or Radmin etc.

Today I am going to teach you guys how to connect any two or as many as windows PC through remote without using any third-party tool like team viewer etc. So let’s learn how to share screens without any third-party tool. As we all know Windows OS is full of hidden programs that are only limited to developers or geeks.

MSRA For Remote Screen Sharing in Windows 10

Today we are going to learn about MSRA (windows remote assistance) executable. MSRA is windows inbuilt remote assistance program using which you can control remote PCs, share remote screens, provide remote support, and much more. Let’s learn how to use MSRA for remote sharing.

Steps to Share or Control Remote PC using MSRA

1. First of all click on startup and type command “MSRA” and press enter as shown below:

MSRA Windows Remote Assistance

2. Now you will see a screen like the below-having title “Windows Remote Assistance“, there are two options displayed:

  • Invite someone you trust to help you: Choose this option if you want to share your screen with someone.
  • Help someone who invited you: Choose this option if you want to control someone other PC remotely.

Click on Option a “Invite someone you trust to help you” to share your screen:

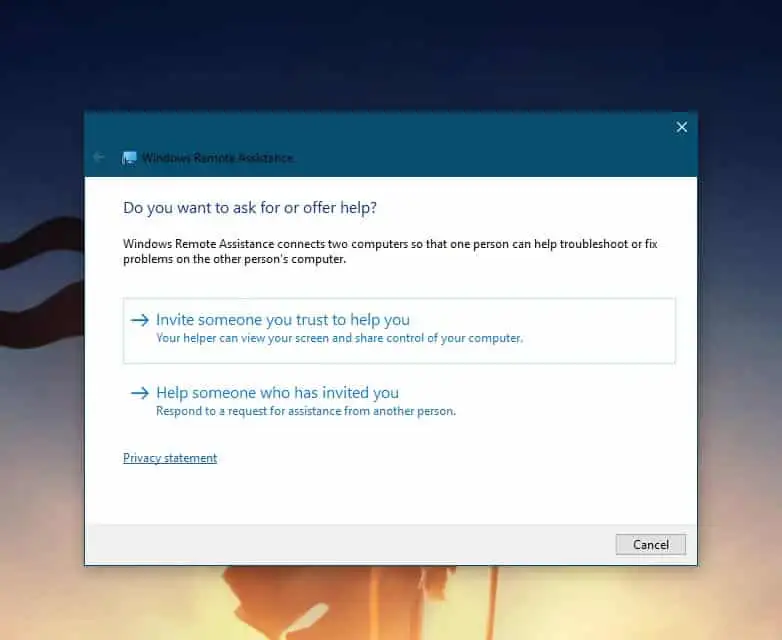

MSRA Windows Remote Assistance screen

Once you click the above option then you will see the below panel with multiple options:

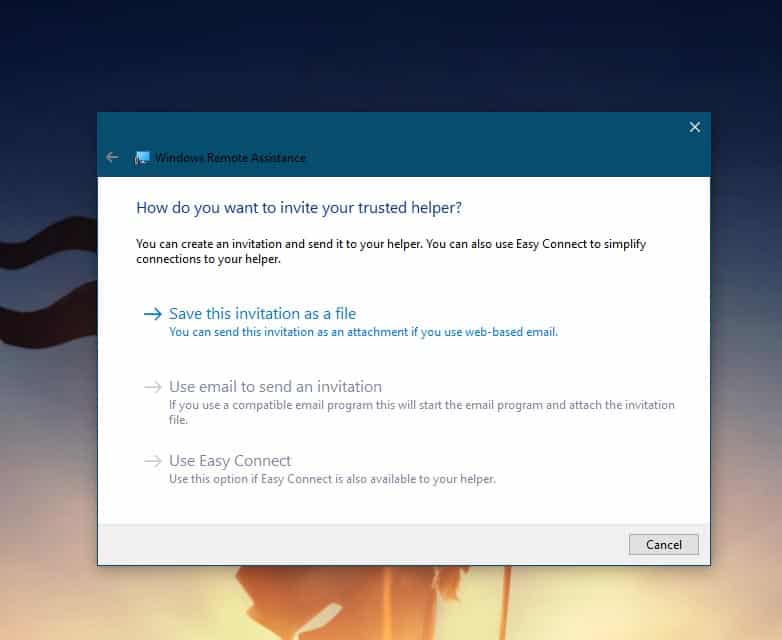

MSRA Windows Remote Assistance screen 3

Now you can see three different options :

  • Send this invitation as a file: On clicking this option you can save the invitation file and send it to anyone from which you require help. After saving the file another window will open containing the password. You have to provide that password to a person whom you want to connect to your machine.
  • Use email to send an invitation: You can send an invitation directly via email but it requires an email client on your machine to send emails like outlook etc.
  • Use Easy connect: Another method to directly connect two PC is using Easy connect but this requires some basic settings at your router’s end i.e. If the computer has IPv6 disabled or is behind a NAT router that blocks Teredo traffic, the Easy Connect option will be unavailable.

Now once you have sent the remote assistance invitation file to a user, he can connect to your PC by double-clicking the invitation file and then entering the password.

Note: You need to enable remote assistance service.

3. Help someone who invited you: By clicking this option you can provide help to anyone who has done the above task. You will need two things: An invitation file and a password to connect remote PC. Did you know there is another smart option by which you can directly connect to any PC using an IP address? If not, well let’s learn that too. Yup, we can also provide windows remote assistance support using an IP address too. Here are the options.

  • First of all click on startup and type the command “MSRA” and press enter.
  • Now you will see a screen where two options are displayed, Select “Help someone who invited you”.
  • After that you will see some options, click on the bottom one “Advanced connection option for help desk” as shown below :

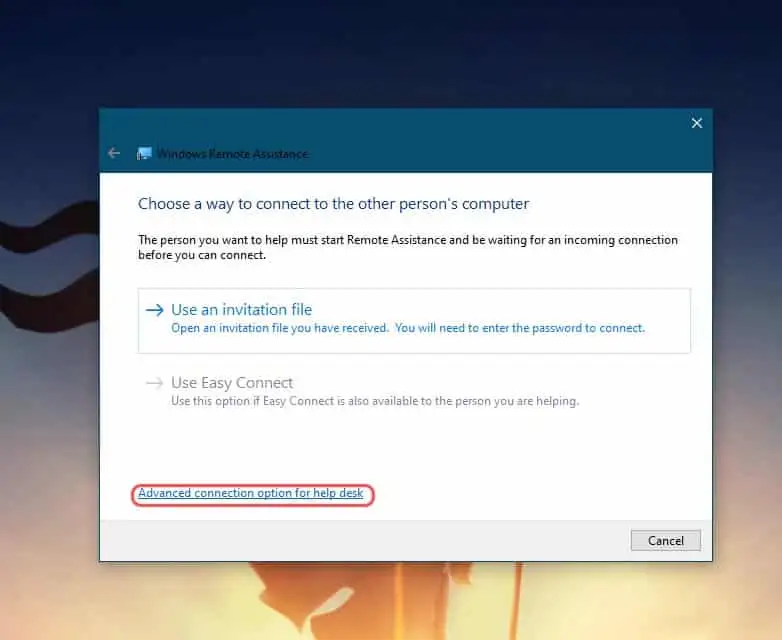

MSRA 3

After clicking the option you see the below the panel to enter the IP address:

MSRA 4

After entering the IP address press Next to connect to IP address. That’s all. Hope you all enjoyed the learning. If you have any queries ask me in form of comments.

Related Posts

39 thoughts on “How to Use MSRA For Remote Screen Sharing in Windows 10”

    • Windows 7,8 or 10:
      1. type CMD in search and press Enter on your Keyboard
      2. the black window come, and type IPCONFIG, press enter wamushenzi we
      3. you’ll find the line IPv4 Address. . . . . . . . . . . : 193.20.15.95 and the numbers are the IPs

      Reply
  1. Just to add,
    1. If you want to perform administrative task, and the session is connected in standard user. Then the screen will go pause (||). So make sure when you connect the system, it should be connected by Adminstrator on different end (Getting Support End).
    2. IP will work in a single Network. As you cannot afford public IP:)
    3. To use this feature in corporate environment is safe
    4. Don’t use it in public environment, as your invitation file contains many confidential information about your PC and network. However it is not readable normally, but yes a un-ethically the file can be exploited.

    Reply
    • You can do this over a LAN network.

      Example:

      One user on the LAN network is needing assistance and his IP Address on the network is 192.168.0.10

      The one providing assistance to him is for example IP Address 192.168.0.11.

      All 11 would have to do is enter in 10’s IP address like you would over the internet and the connection is established. Within LAN networks, your connections out to the internet go through the router anyway, so it’ll know that the connection you’re making is internal rather than external due to the specific IP Address of LAN network infrastructures.

      Reply
  2. A note to the guy who posted this…this method only works in an environment which shares the same domain name or subnet…this method does not works on internet unlike teamviewer, which works every where and any where.

    Reply
  3. Would the DHCP on the router affect the address within the advanced setting method, assuming this is on LAN only PC to PC. Also, across the internet connections, if you were to type in an IP address, if at that address there were multiple PCS, how would you connect to the right one, using the advanced method above? I’m assuming it would be something within the invite, correct?

    Reply
  4. dear sir ! when i click on “Invite someone you trust to help you” then it shows me that ” this computer is not set up to send invitations” nd the option given below is “Repair ” what i do to enable screen sharing???

    Reply
